Pentair CTOS-10 Replacement Cartridge

Pentair CTOS-10 Carbon Block Water Filter Replacement Cartridge – Premium Filtration for Chlorine, Taste, and Odor Reduction

Introducing the Pentair CTOS-10 Replacement Cartridge, a leading solution in water filtration for coffee machines, ice machines, and steam equipment. Engineered for excellence, the CTOS-10 is a 10-inch drop-in cartridge designed to significantly enhance water quality by reducing sediment to 0.5 microns and diminishing chlorine, taste, and odor. Operating at a flow rate of 1.5 gallons per minute, it effectively treats up to 15,000 gallons of water. This cartridge incorporates IsoNet®, OptiPure’s exclusive scale-inhibiting technology, ensuring consistent scale and corrosion protection.

System Benefits:

• IsoNet Technology: Delivers robust protection against scale and corrosion, enhancing equipment longevity.

• Reduces Maintenance Costs: Lowers the frequency of maintenance and extends the lifespan of your equipment.

• State-of-the-art Filtration: Employs gradient-density depth filtration to remove dirt, rust, and debris, ensuring clean, clear water.

• Activated Carbon Filtration: Improves water taste and safeguards against corrosive chlorine.

• High-Volume Cartridge: Decreases maintenance needs by extending the filter system's life.

• Efficiency and Sustainability: Enhances operating efficiency by minimizing scale and corrosion and reduces waste by only replacing the drop-in cartridge.

• Cost-Effective: Offers a lower cost per gallon compared to proprietary quick-change filters.

• NSF Certified: Meets Standard 42 as a replacement cartridge in OptiPure FXI Series Systems.

Ideal Applications:

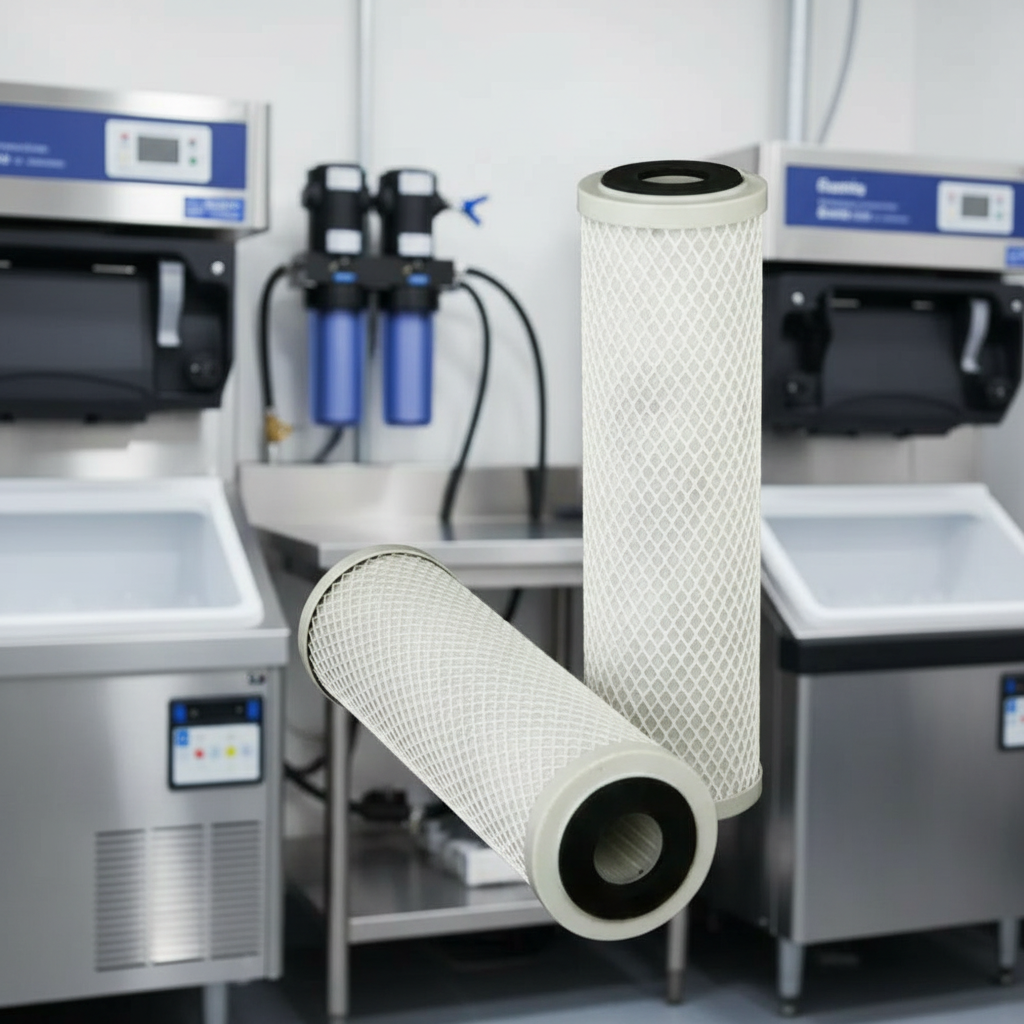

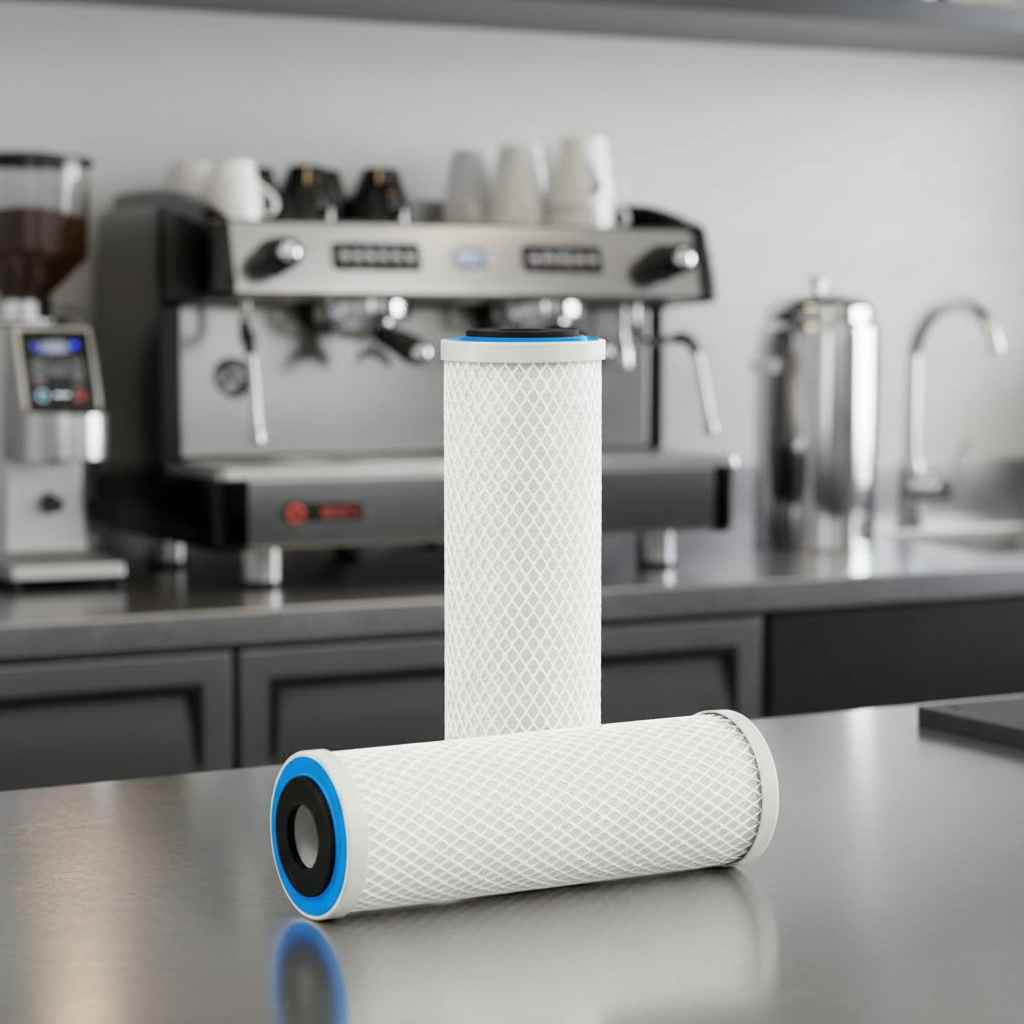

Suitable for use with ice machines, coffee brewers, and steam equipment. It is compatible as a drop-in style cartridge for the OptiPure FXI System and can be retrofitted into most standard 10” drop-in style housings.

Installation Tips:

• Verify the cartridge is the correct replacement.

• Adhere to specified temperature and pressure limits.

• Ensure at least 3 inches of clearance below the system for easy filter housing removal and cartridge replacement.

• No activation or flushing is needed for optimal operation.

• Only connect to cold feedwater.

Pentair CTOS-10 Replacement Cartridge

Technical Specifications:

• Dimensions: 9.8”H x 2.8”W x 2.8”D

• Operating Pressure Range: 10 - 125 psi

• Inlet Water Temperature Range: 35˚ - 100˚F

• Chlorine, Taste, and Odor Reduction: Up to 15,000 gallons

• Service Flow Rate: 1.5 gpm

• Sediment Reduction: 0.5 microns

• Scale & Corrosion Inhibitor: IsoNet (70 grams)

System Cartridge Compatibility:

• FXI-11: Part Number 160-50105

• FXI-21: Part Number 160-50015

Maintenance Tips:

• Change pre/post-filters and mineral addition cartridges every 6 months, upon reaching volume, or if water pressure or flow decreases.

• Membrane lifespan varies based on feedwater conditions and can range from 12-18 months to 3-5 years.

• This commercial-quality product should be installed and maintained as per the manufacturer’s guidelines and is not intended for use with water of unknown quality without proper disinfection.

This comprehensive offering underscores our commitment to providing premium water filtration solutions that enhance the operation and longevity of your equipment.

California Residents: Proposition 65 Warning applies to this product.
