Pentair Everpure QL3B 2FC5-S Undercounter Ice Machine Filter

Pentair Everpure QL3B 2FC5-S: High-Operation Ice Machine Water Filter for Clean, Pure Ice

Introducing the Pentair Everpure QL3B 2FC5-S Undercounter Ice Machine Filter, a leading-edge solution built for exceptional water quality. The system includes the exclusive Fibredyne™ II bacteriostatic media, adept at reducing sediment to 5 microns and diminishing chlorine taste and odor. With a flow rate of 1.5 gallons per minute (gpm) and a volume of 6,000 gallons, it includes an integrated scale inhibitor to prevent scale formation on equipment. This system is recognized for its excellence with a certification under NSF/ANSI Standard 42.

Key System Advantages:

• Scale Inhibition: An integrated scale inhibitor to drastically reduce the likelihood of scale formation, ensuring the longevity and efficiency of equipment.

• State-of-the-art Filtration: The proprietary Fibredyne II media excels in minimizing chlorine taste and odor, alongside reducing particulates down to 0.2 micron.

• Bacteria Growth Prevention: Designed to inhibit bacterial growth within the filter, optimizing operation and preventing media fouling.

• Ease of Maintenance: Includes such as an inlet shutoff valve, flush valve, and pressure gauges are included to simplify service and monitoring.

• Quick Cartridge Replacement: The quick-change cartridge system facilitates easy and hygienic cartridge changes.

• Contaminant Reduction: Effectively reduces various contaminants for clearer, fresher water, enhancing the taste of beverages.

• Equipment Protection: Aids in maintaining equipment reliability and efficiency, reducing maintenance needs and downtime.

• Certification: Meets NSF/ANSI Standard 42 for Bacteriostatic Effects & Odor, and Particulate Class III.

Applications:

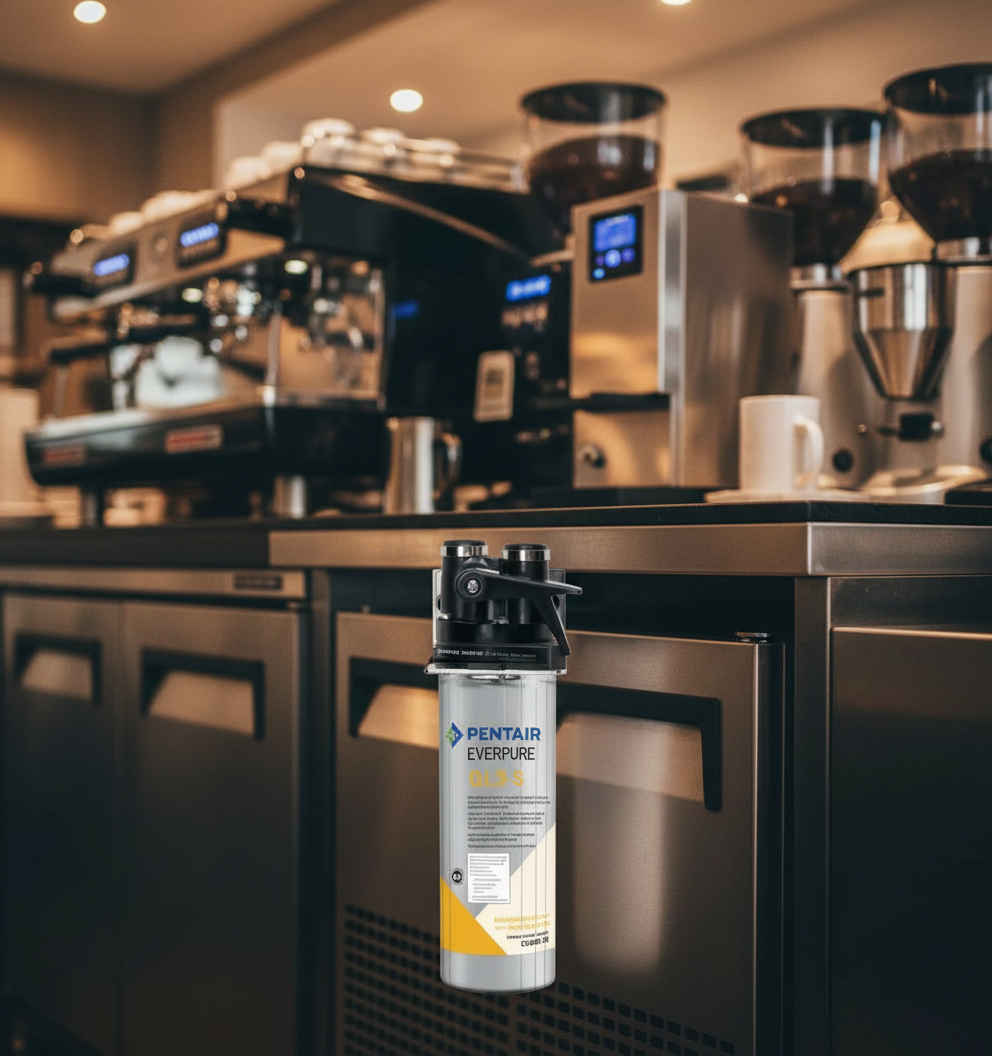

Ideal for ice machines and coffee brewers, enhancing water quality and taste.

Installation Guidelines:

• Ensure the system is mounted in a location capable of supporting its weight.

• Install the system vertically, allowing a 2 ½ inch clearance below the cartridge for easy maintenance.

• Maintain feed water temperature within 35°F to 100°F.

• Protect the system from freezing temperatures and ensure feed water pressure does not exceed 125 psi.

• Prioritize a thorough flushing of the cartridges for five minutes upon installation.

• Refer to the included installation, operation, and maintenance guide for comprehensive instructions.

Pentair Everpure QL3B 2FC5-S Undercounter Ice Machine Filter

Technical Specifications:

• Dimensions: 11.5" H x 3.5" W x 4.25" D

• Connections: 3/8" FNPT inlet and outlet

• Operating Pressure: 10 – 125 psi

• Temperature Range: 35 – 100°F

• Flow Rate: 1.5 gpm

• Volume: 6,000 gallons

• Chlorine and Particulate Reduction: Yes

Replacement Cartridges:

• Model: 2FC5-S

• Part Number: EV9691-86

• Quantity: 1

• Description: Primary filter

Cartridge Replacement Tips:

• Replace filters every six months or upon reaching volume.

• Ensure at least annual replacement to maintain water quality.

• Use in conjunction with adequate disinfection for water of unknown quality.

• Filters certified for cyst reduction should be used on disinfected water containing filterable cysts.

Disclaimer: Conditions of use are beyond our control; we cannot assume liability for installation or use of our products. Always consult the installation guide and adhere to local water quality guidelines.

California Residents: Proposition 65 Warning applies to this product.
